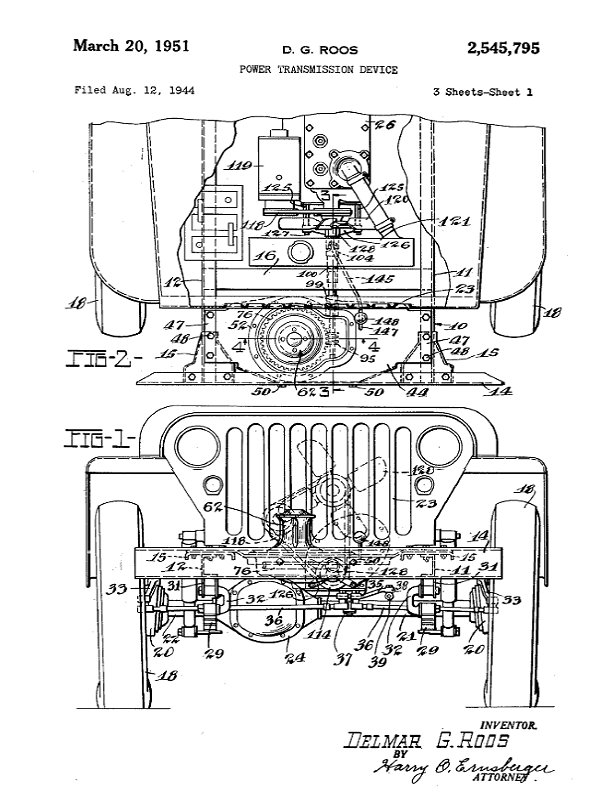

Braden J2 Winch Parts
return to Braden Winch main page
Ratchet Gear

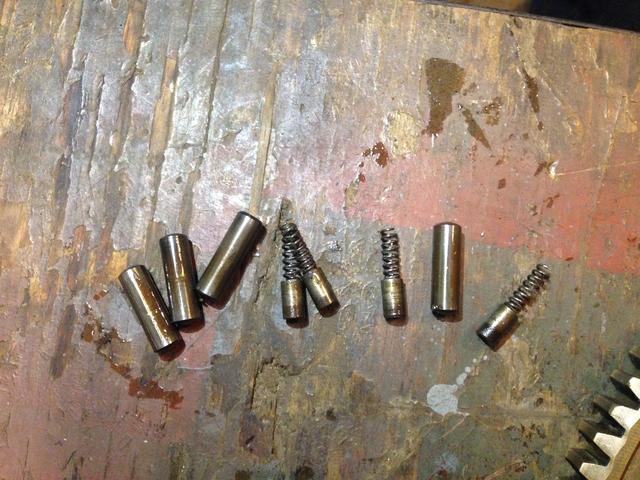

Spring loaded dogs

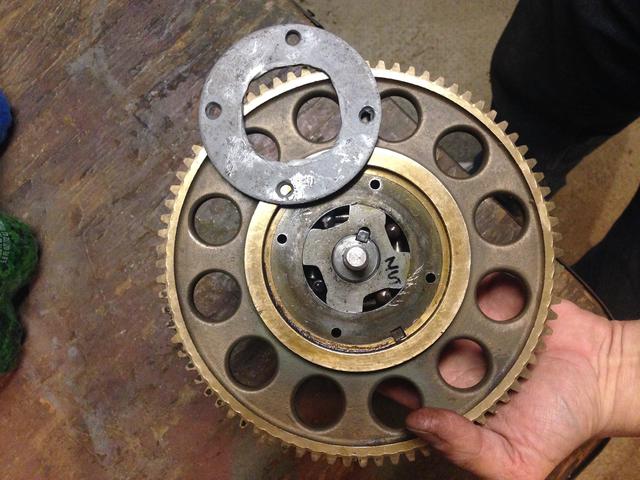

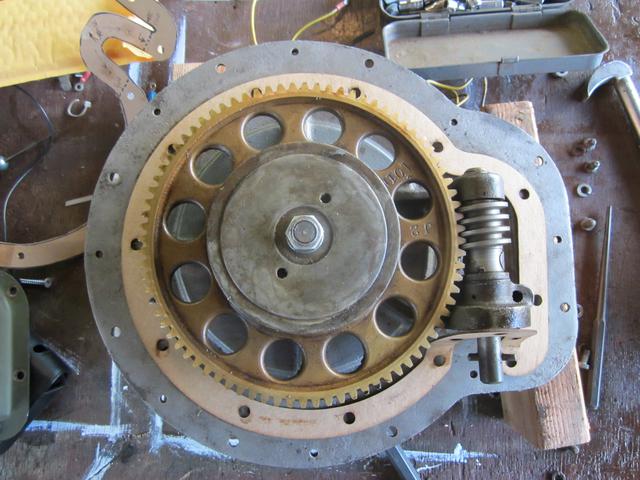

Assembling with new ratchet gear and pins (bottom view)
Ratchet gear

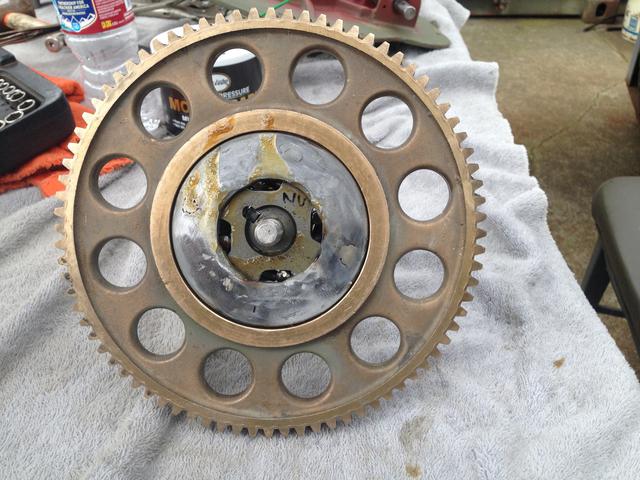

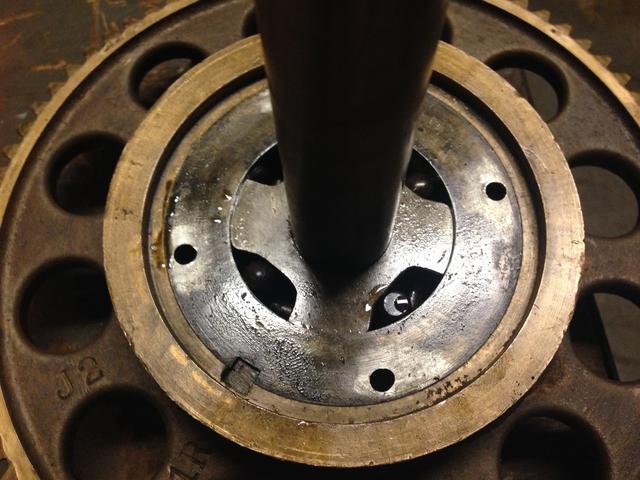

and bull gear (top view)

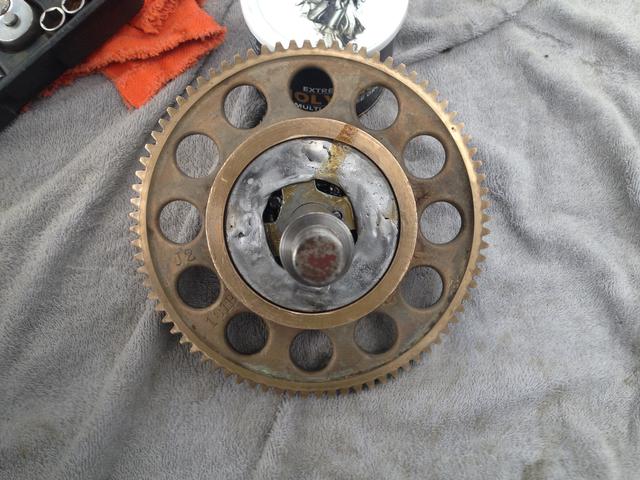

Complete assembly
and brass bull gear

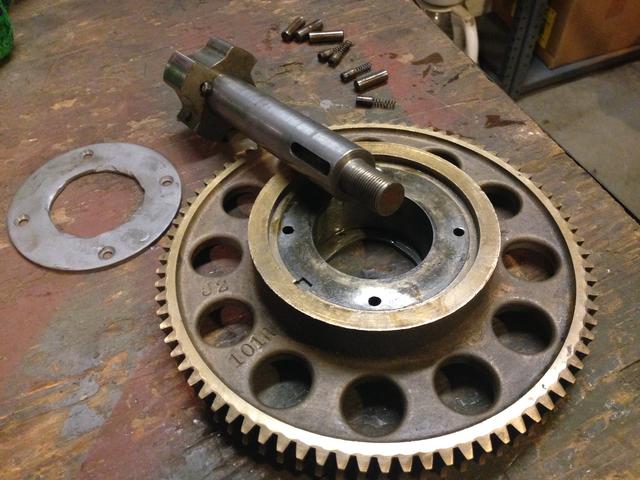

Bull gear with worm drive gear

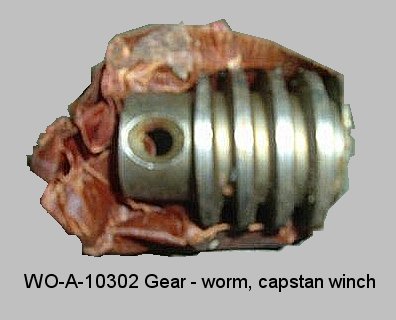

Worm Gear WO-A-10302

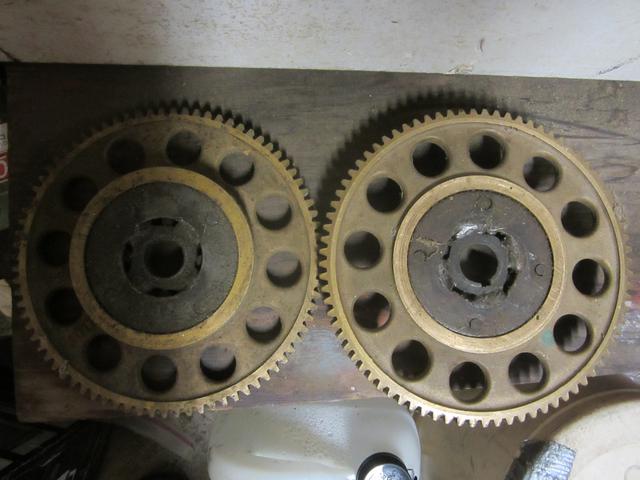

Cracked and welded solid ratchet gears

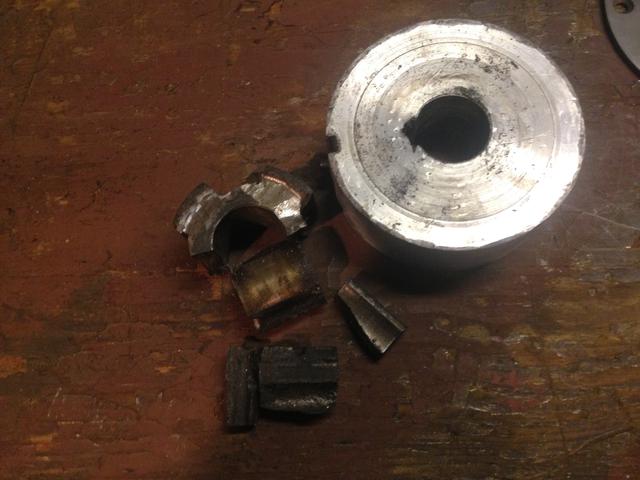

Shattered ratchet next to a "Joe McGee" replacement hub
Click for larger images
Unit assembled

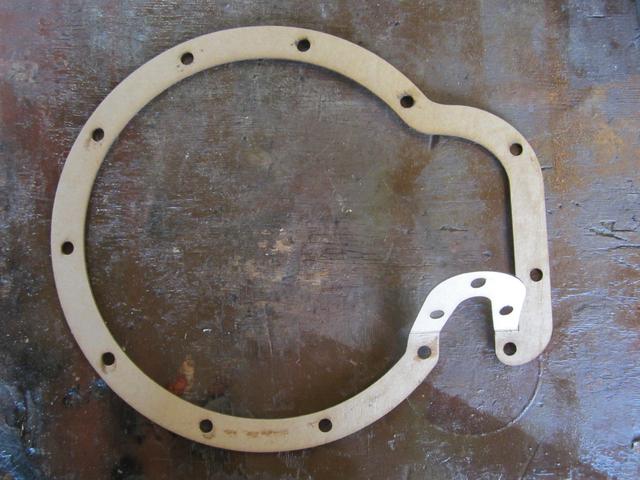

Pan gasket - avail.
Mounting Plate Spacers - GPW only

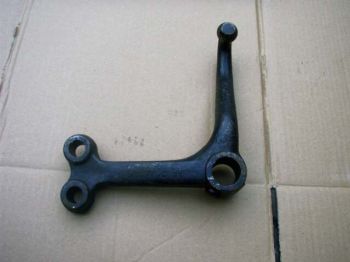

Bell Crank
inverted at tie rod ends
The ultimate toy

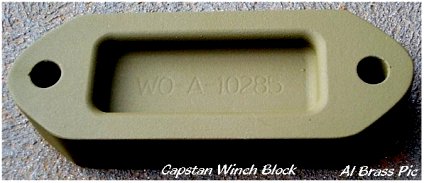

Frame Spacer Block

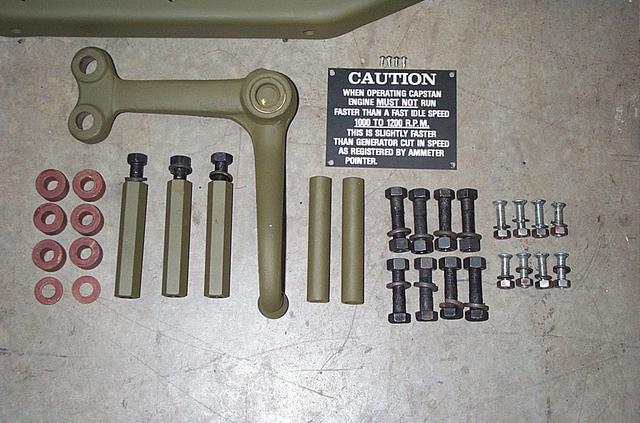

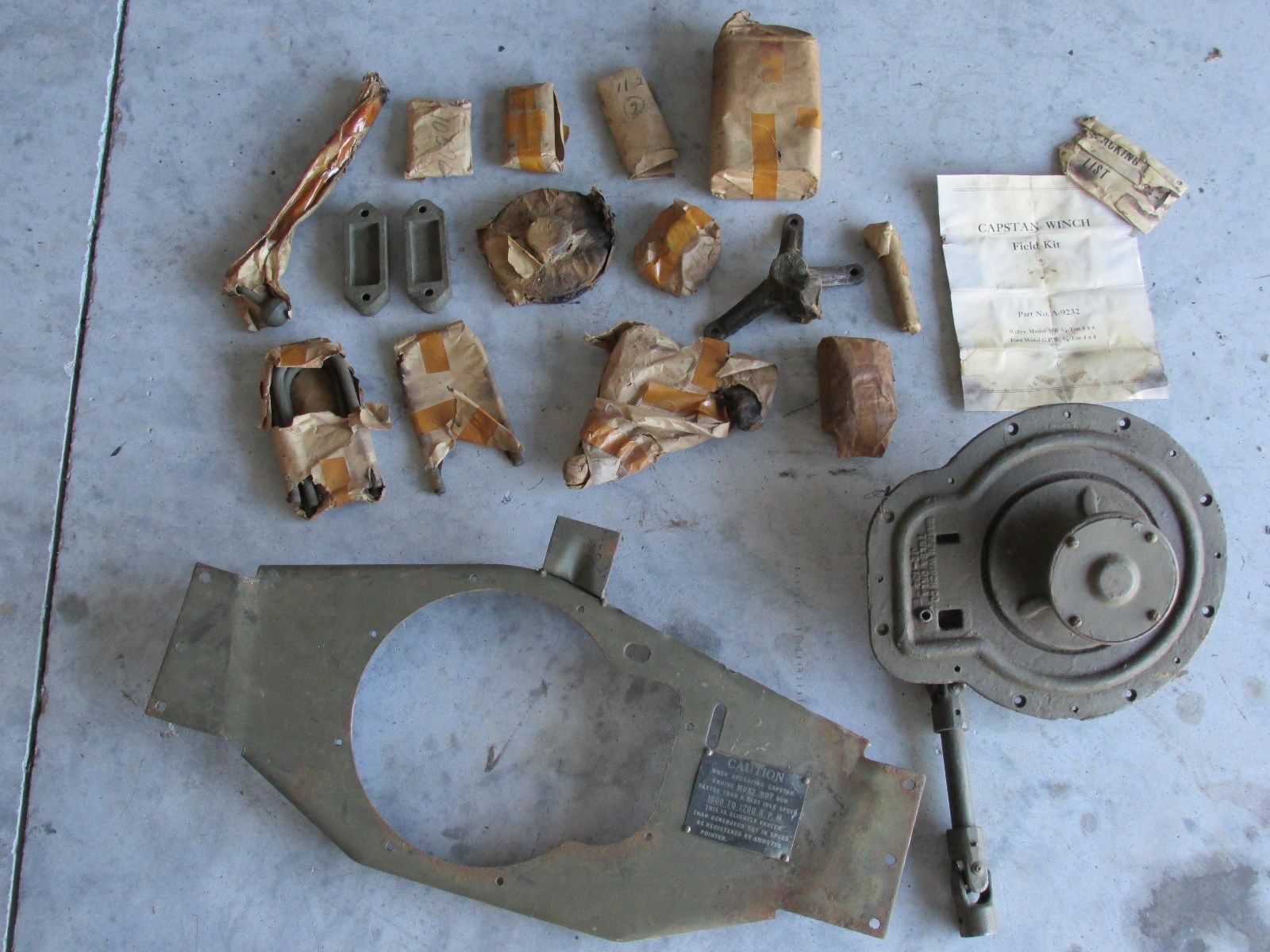

Misc parts

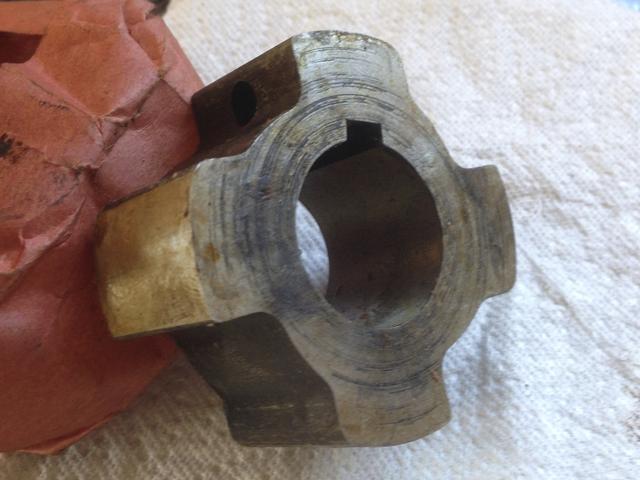

Ratchet Gear  when there is a failure this is probably it

My original winch came to me via family, lugged in a suitcase as checked baggage and hauled all the way from Oslo, Norway back in 2004.   Frank had what was left of a winch that was missing some parts and had been sitting in his storage space.  I never expected that.  Thanks Frank!

Subsequently, I started pursuing the necessary parts for a complete winch and that is how it all started.   As shown below, the winch that I received was broken and needed a replacement ratchet gear in order to operate as original.   The gear, welded in place was no longer working.  That gears function is to allow the capstan head to rotate freely in the counter-clockwise direction.   When welded, this function is eliminated.  I was told by a machinist that this was a sprague clutch mechanism.

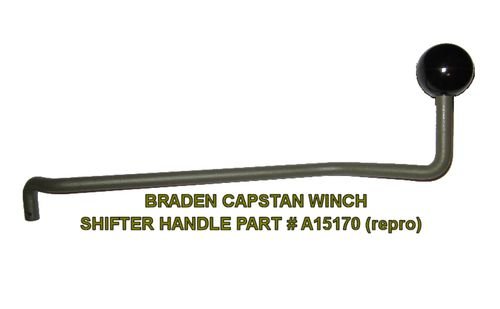

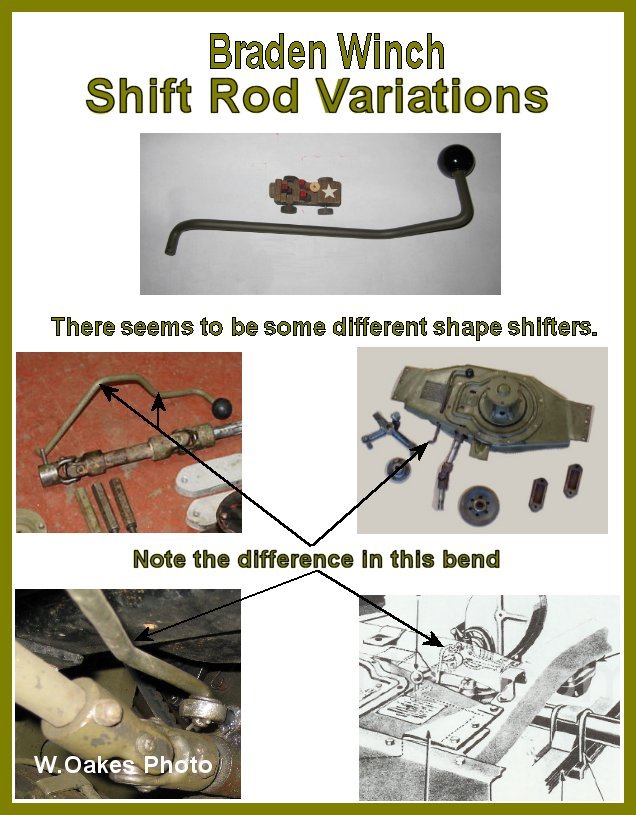

I now have completed my winch and have managed to be involved in the building of mounting plates, making replacement gears and fabricating the shifter handles that go with these rare and hard to acquire winches.   I have squirreled away some spares so...???  What to do...what to do!
Repaired ratchet gear
Repaired ratchet top view after welding top and bottom retainer ring

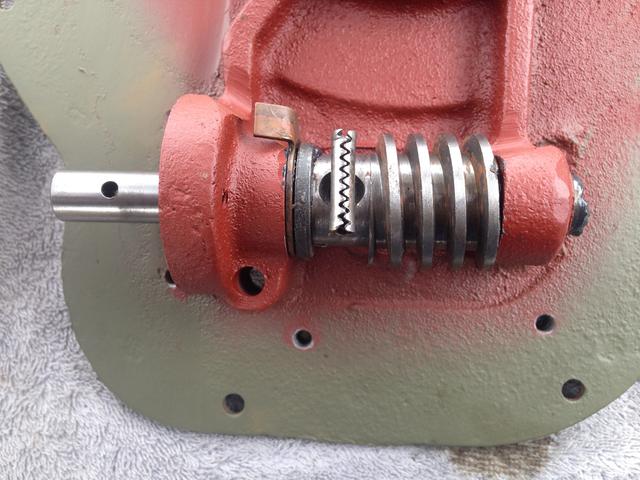

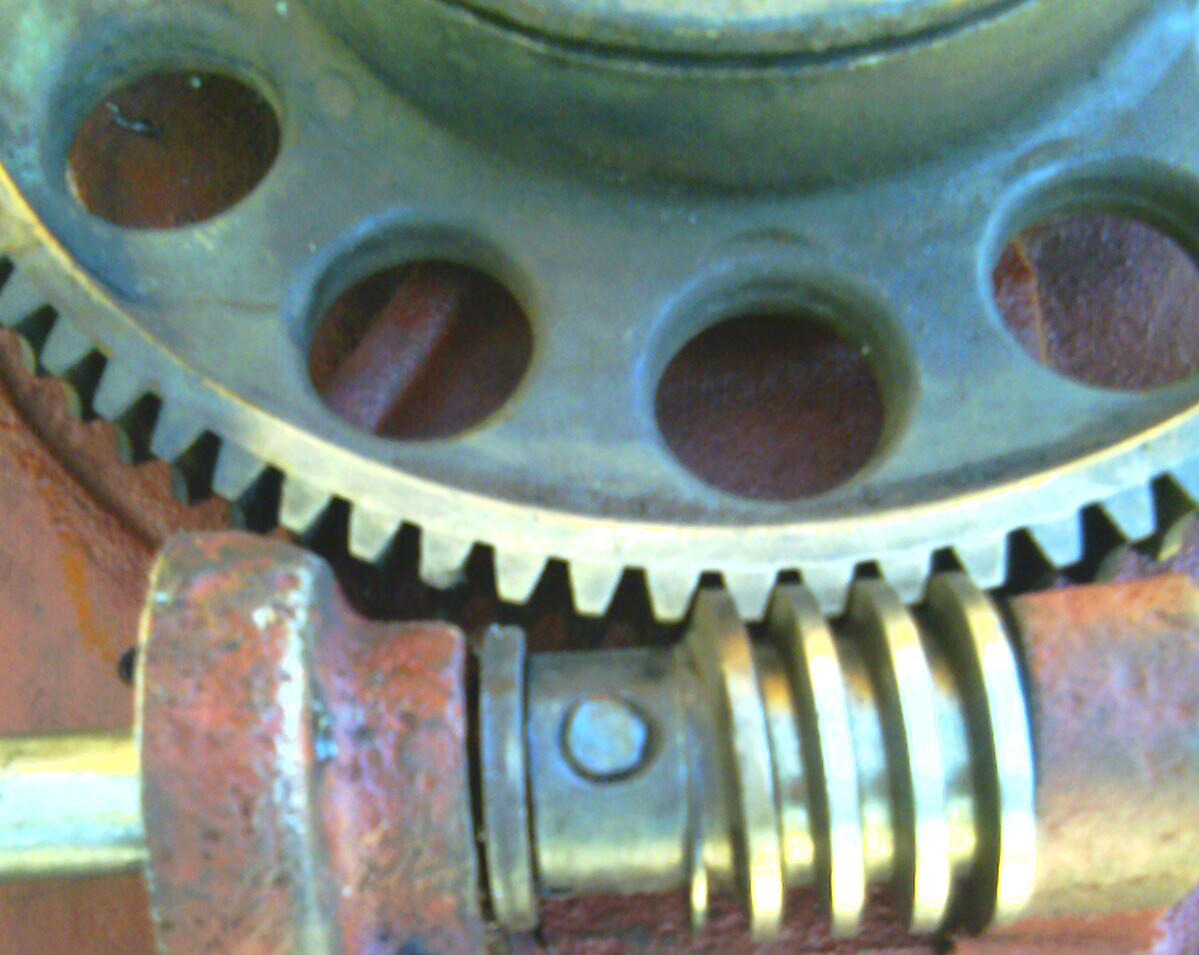

Repaired worm drive w/roll pin

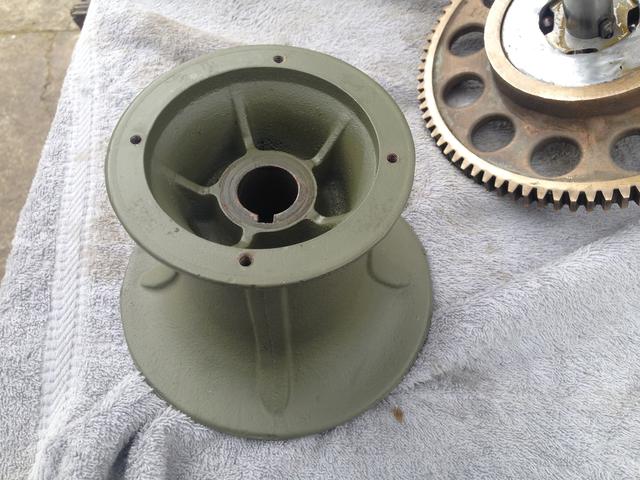

Braden winch drum

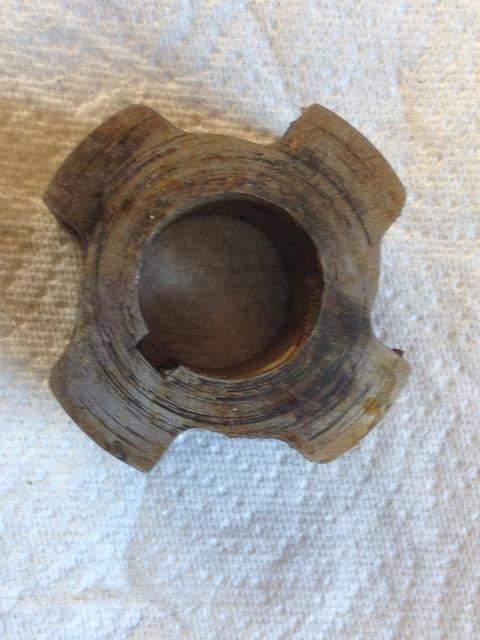

Braden ratchet gear

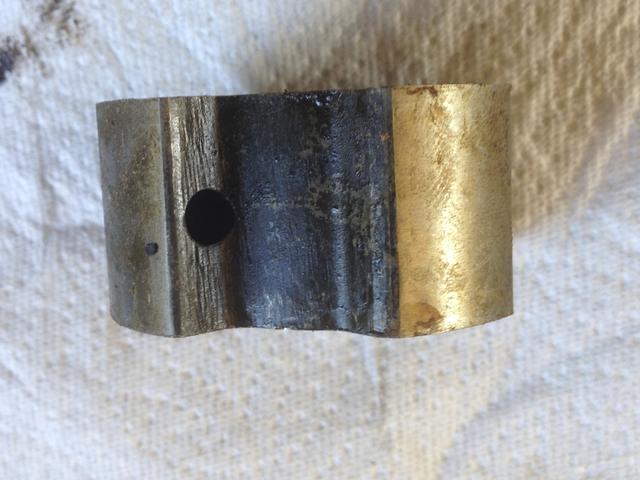

Braden ratchet gear side view
Some of the photos above were taken of the rebuild of a Braden J2 winch owned by Gary Hurwitz

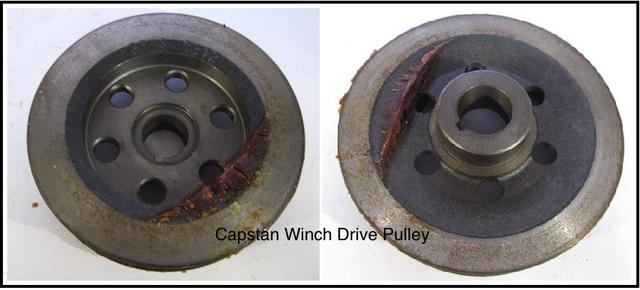

Crankshaft  Drive Pulley

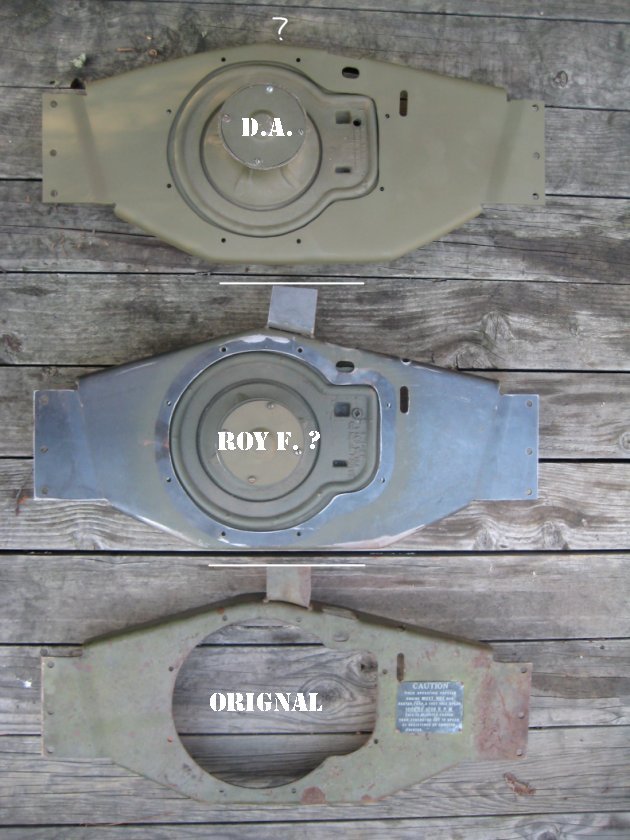

Capstan Winch Mounting Plates
